CNC Routing of Aluminum Spray Templates for Nike Soccer Joga Bonito



CNC Routed Aluminum Soccer Spray Templates

Joga Bonito - Nike™

A project that really reflects the benefits of a large cutting area. We created multiple spray templates for Nike to use as a method of spraying onto the soccer field. The stencils ranged from sizes of 8' x 8' to 12' x 8' out of 1/16" in. thick aluminum sheets.


Toolpathing of Spray Templates -
1/6" thick 6061- T6 Aluminum Sheet




View Photo Album
8' x 8' Joga Fustal template

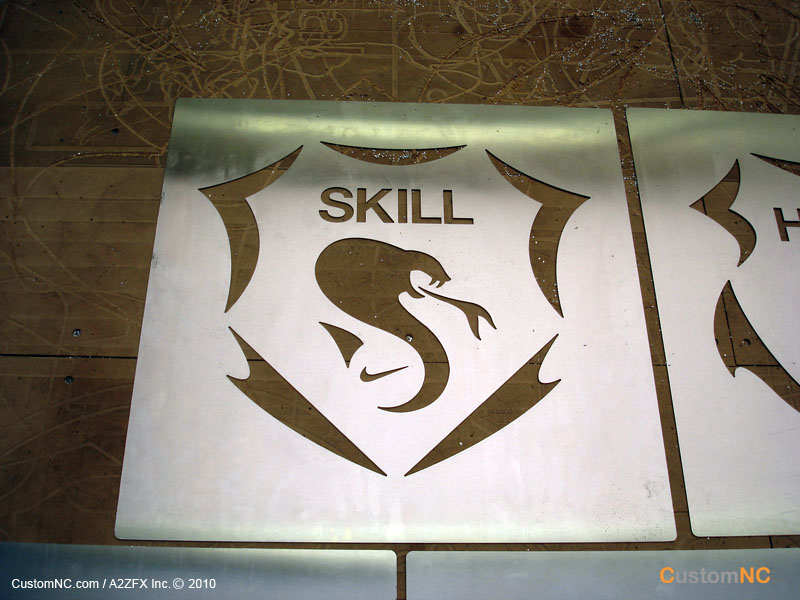

3' x 3' Shield Templates
Total of five shield templates
