CNC Milling, Turning & Lathe
Our Manufacturing facilities include multi-axis machining, high speed machining, CNC lathe, vertical machining, with capabilities ranging from micro-precision to conventional machining, providing ultra-precision for items up to 165"L x 94"W x 50"H.
Utilizing state of the art equipment, we are able to provide our clients with precision machining, with accuracies ranging from .0008" to .004" on larger scale projects. We also offer close tolerance 5 axis machining and super precision lathe work.
Our years of experience and expertise in CNC fabrication is well suited for our wide range of clientele from the Aerospace, Medical & Automotive Industries.

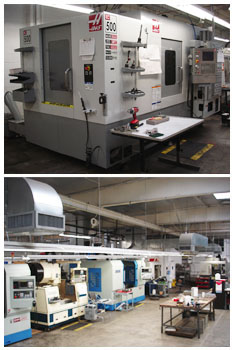

Our Equipment
ACRA CNC Lathe -1440
- 14X40 ENC CNC Tech Lathe |
ACRA BMV-1300
- X 63”
- Y 33”
- Z 27” |
Haas ESC500
- X 32” (813 mm)
- Y 20” (508 mm)
- Z 28” (711 mm)
- 4-axis |
ACRA APC560
- X 40” (1016 mm)
- Y 26” (6t60 mm)
- Z 25” (635 mm)
- Vertical Machining
|
ACRA FDM-5000
- X 165”
- Y 94”
- Z 50” |

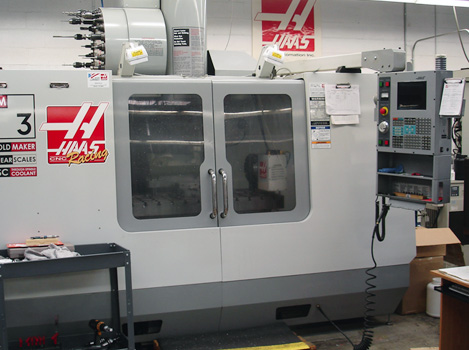

Haas VM3
- X 40”
- Y 26”
- Z 25”
- Vertical Machining |
ACRA ADT-A600
- X 22” Y 16” Z 16”
- Positioning 0.0002" / 12"
- Repeatability ± 0.0001"
- Table Repeatability ± 0.0004 " |
|
Equipment List |
|
|
|
|
|
|
|

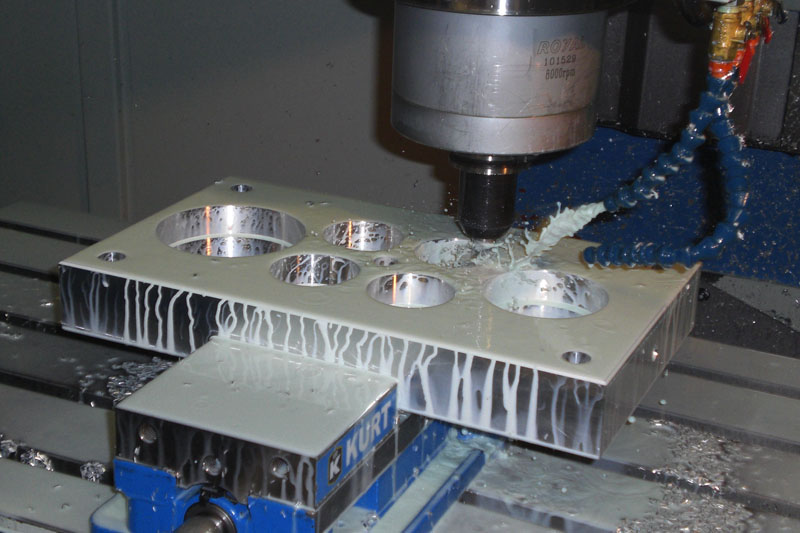

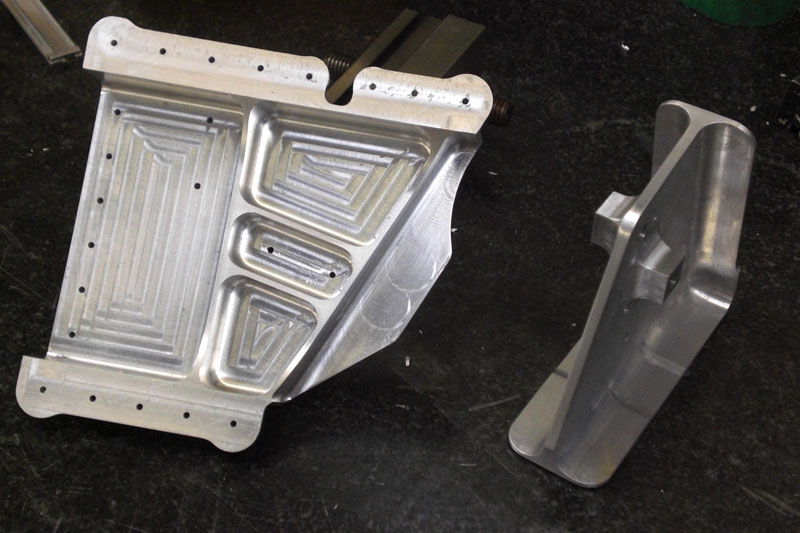

Machined Aluminum Parts
Aluminum Injection Mold Tooling
ACRA FDM-5000 165in. x 94in. x 50in.
|
